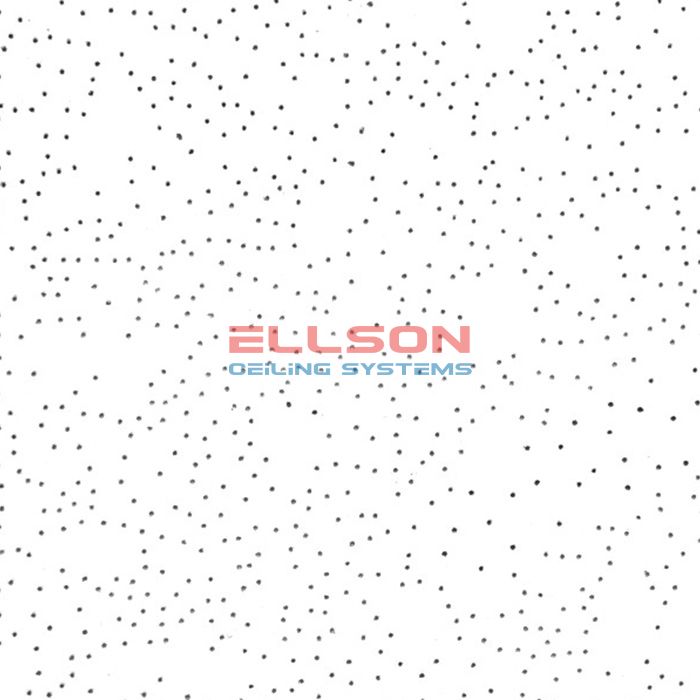

Mineral Fiber Acoustic Ceiling Tiles EM05

ELLSON Mineral Fiber Acoustic Ceiling Tiles are manufactured from selected mineral fiber and special binders which are a high-grade interior decoration material. Through a high-tech manufacturing process, ELLSON Ceilings exhibit efficient sound absorption and thermal insulation and fire resistance qualities.

As the high-grade interior decoration material for suspended ceilings, ELLSON Mineral Fiber Acoustic Ceiling Tiles is applied to interior design of high-class buildings such as office buildings, shopping malls, restaurants, hotels, gymnasiums, stations, hospitals and libraries.

All ELLSON Ceilings are Asbestos-free products.

• Non-directional pattern reduces installation time

• Excellent acoustical performance for a more comfortable space

• Excellent light reflectance allows for more efficient use of energy

• Best choice for a large scale ceiling area.

• Dimension: 595x595mm, 603x603mm, 595x1195mm, 603x1213mm etc.

• Thickness: 9mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm etc.

• Edge: Square Edge, Tegular Edge, Micro Look, Concealed Edge

• Package: Standard export carton

• Material: Wet Formed Mineral Fiber

• Surface: Vinyl Latex Paint

• Color of surface: White, Black

• Noise Reduction Coefficient: NRC0.60

• Thermal Insulation: 0.03W/(m·K)

• Fire Resistance: Class A

• Humidity Resistance (RH): 95%

• Light Reflectivity (LR): 85%

• Cache Acoustic Coefficient (CAC):36dB

• Density: 260-280kgs/m3

• Recycled Content: 70%

• Mold resistance

• Asbestos Free

• Formaldehyde Free
