Suspension Installation of Exposed Grid System

It uses light-gauge haking vanish t-grids to fix and hang the grid according to the specification of mineral wool board directly.

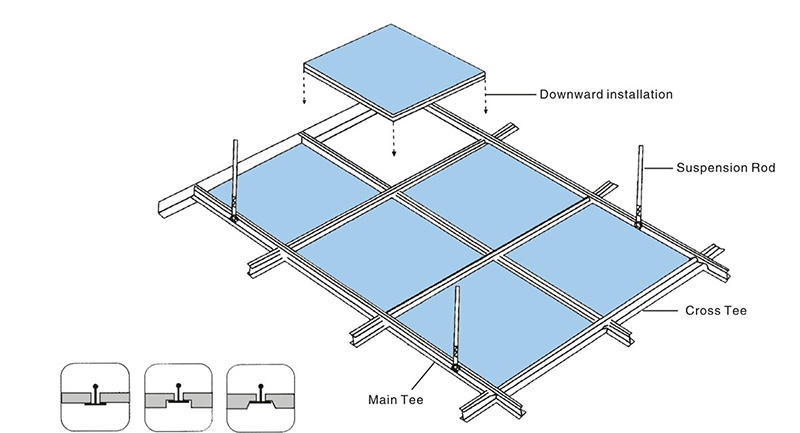

★ Choose the right installation method according to the design requirements and determine the position of suspension center.

★ Fix the suspension center to the coping with expansion screw bolts, other methods is available if the coping has pro- buried elements.

★ Determine the length of the suspension rod according to the height of the coping; generally the length is 10- 15mm higher than that which is used.

★ Suspending the main tee to the ceiling and fix the perimeter to the wall according the coping height.

★ Fix the cross tee according to the board specification.

★ Install the mineral wool acoustic board on it and pay attention to installing the tiny boards around the ceiling equally.

It is suggested to use CB38 main tee to bear the weight when the suspending ceiling area is more than 100㎡.

It is suggested to use CSA50 or CS60 to bear the weight in order to keep the whole structure when there are persons on it.
